GS5T0215-PV050 Nominal capacity: 110kWh Maximum Input Power: 96kW Rated Output Power: 50kW Maximum Output Power: 50kW Net Weight: 1370 kg Gross Weight (with packaging): 1420 kg Unit Dimensions: 1000 × 1320 × 2145 mm Dimensions with Packaging: 1070 × 1390 × 2285 mm
GS Automatic All-in-One Energy Storage System is a high-efficiency solution for commercial and industrial use, offering both liquid and air cooling for optimal performance. With LFP battery technology, advanced EMS and PCS, it enables real-time monitoring, smart schedule, and seamless integration with solar PV, EV charging, and backup power. Ideal for peak shaving, demand response, and backup applications, it enhances energy efficiency, cost savings, and security.
Uses mature, safe, economical, environmentally friendly, ultra-long life, high-reliability Lithium Iron Phosphate (LFP) battery modules;
Integrates independently developed BMS products for real-time monitoring and management;
Adopts comprehensive battery protection strategies and fault detection/isolation measures to ensure energy storage system safety;
Key components use internationally renowned brands for reliable quality.
With four layers of fire safety protection, the inverter meets the IP66 protection rating, while the cabinet achieves IP55, ensuring durability and enhanced safety in various environments.
Equipped with high-performance LFP batteries, GS Automatic All-in-One C&I Energy Storage System offers an extended cycle life and stable performance. The intelligent liquid cooling thermal management technology effectively regulates battery temperature, enhancing system efficiency and lifespan.
Independent intelligent temperature control system ensures small temperature difference between modules and smooth module temperature fluctuations, extending battery life.
High degree of modularization, simple structure, easy installation and maintenance.
The C&I ESS supports VPP (Virtual Power Plant) functionality and integrates with GS Automatic Cloud for 24/7 remote monitoring, ensuring efficient and stable operation anytime, anywhere.

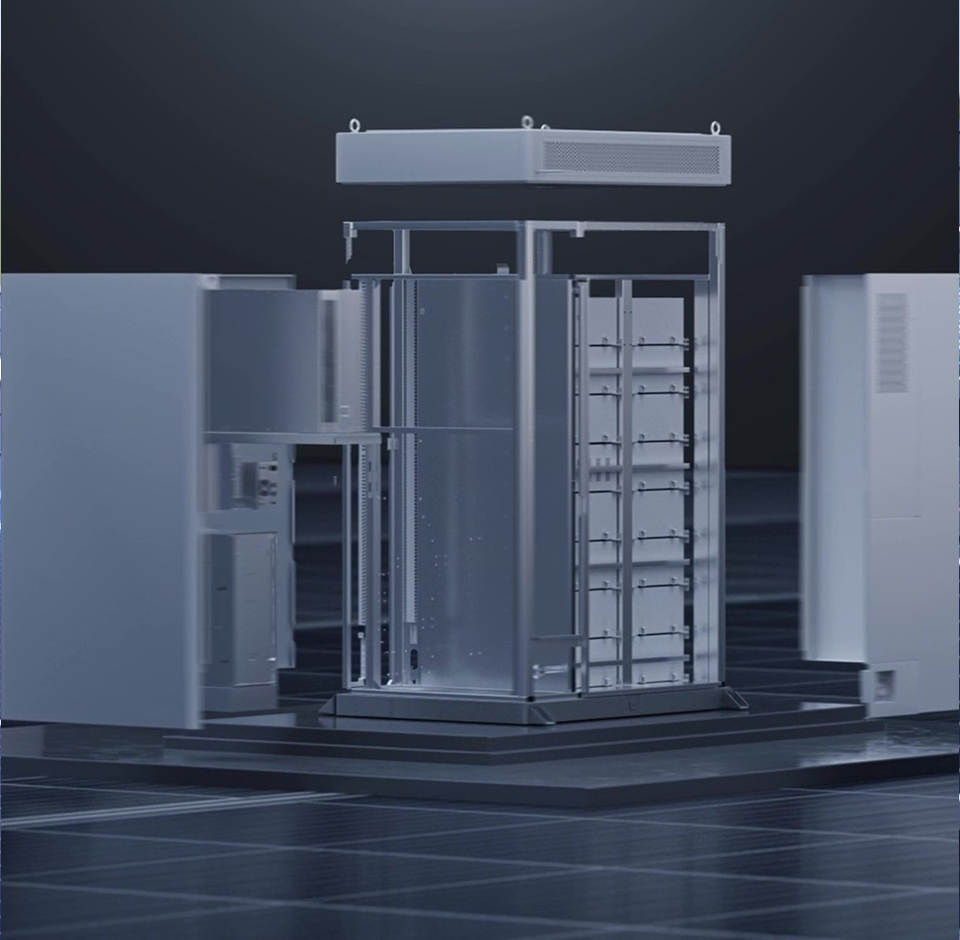

Featuring an ALL-in-One design, our C&I Energy Storage System integrates an energy storage battery, PCS, thermal management system, and AC/DC distribution into a single unit. With a battery capacity of up to 261 kWh, it ensures a stable and reliable power supply for both commercial and industrial applications, making deployment and maintenance easier.
GS Energy provides a complete range of high voltage all-in-one battery energy storage systems designed for commercial, industrial, and large residential applications. Each system is factory pre-configured, combining inverter(s), battery modules, BMS, microgrid controller, HVAC, fire protection, and an outdoor-rated enclosure into a single plug-and-play BESS C&I energy storage battery solution. With modular scalability, multi-level safety protection, and flexible installation options, GSL’s C&I BESS ensures stable, reliable, and cost-efficient power supply for businesses, utilities, and energy communities worldwide.
Smart, Scalable & Reliable ESS for Commercial and Industrial Projects GS ENERGY delivers next-generation commercial energy storage systems engineered for businesses that demand high efficiency, long-cycle performance, and uncompromised safety. Built with Tier-1 LiFePO₄ battery modules (51.2V 314Ah, 14.34kWh) and backed by over 8,000 charge cycles, each system provides up to 112kWh and can be expanded to 3,584kWh (3.5MWh) with 32 units in parallel. Whether for solar self-consumption, peak shaving, backup power, or microgrid deployment, GS ENERGY enables enterprises to reduce electricity costs while ensuring stable power supply and long-term operational reliability.
Scalable 20kWh – 60kWh Lithium Ion Energy Solutions for Commercial & Industrial Applications The GSL HV51100 Series is a state-of-the-art high voltage battery storage solution engineered for commercial and industrial energy applications. Utilizing lithium ion high voltage battery technology, the system can be deployed as a 20kWh battery, 40kWh system, or scaled up to a 60kWh battery configuration, providing versatile energy storage for offices, factories, telecom sites, and microgrids. Designed with intelligent air-cooling and robust thermal management, the HV51100 Series ensures reliable operation and a long 6,500+ cycle lifespan. For enhanced flexibility, the system supports up to 32 battery units in parallel, while compatible inverters allow 10 units in parallel, enabling large-scale power storage solutions. With IP54-rated enclosures and international certifications including UL1973, UL9540, UL9540A, and IEC62619, the HV51100 Series delivers safe, scalable, and future-ready high voltage battery storage, ideal for demanding commercial and industrial environments.

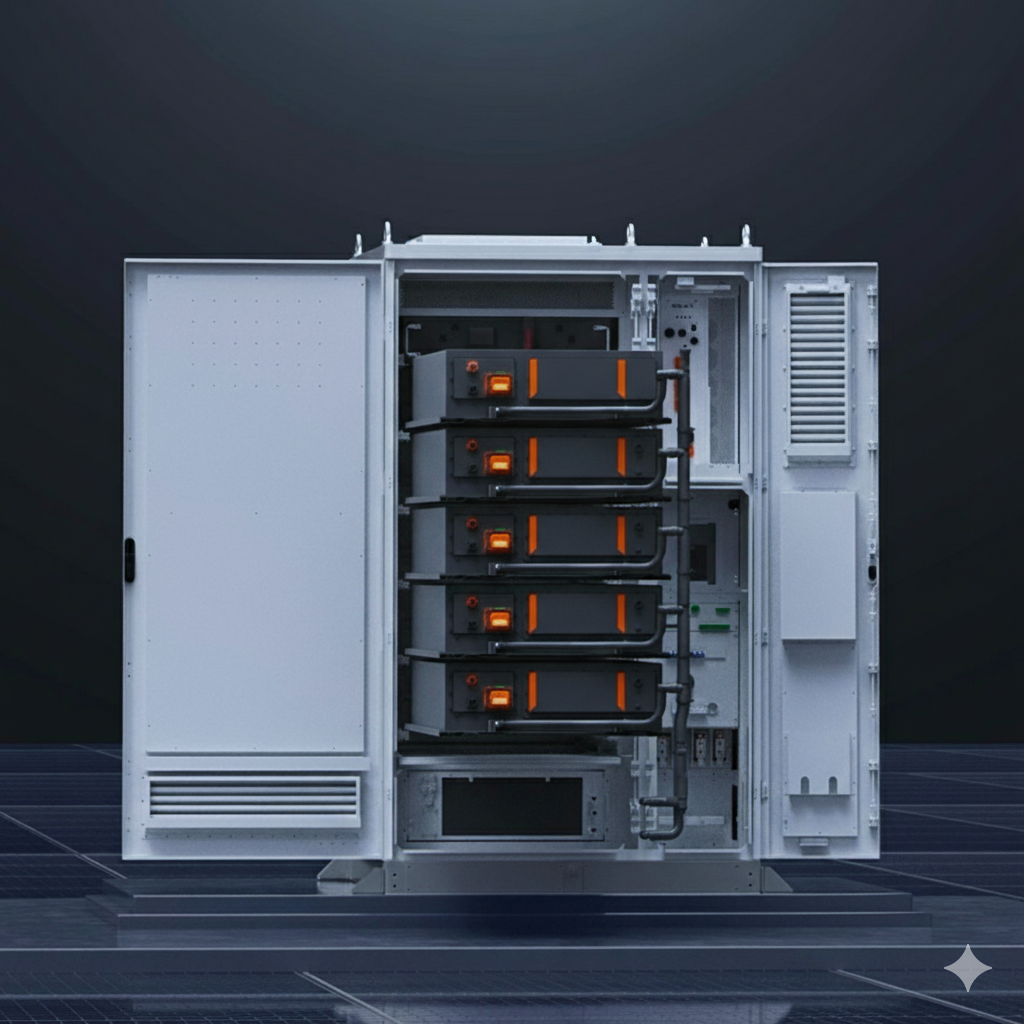

All-in-one Liquid Cooling Energy Storage Cabinet System 261kWh All-in-One Liquid Cooling Energy Storage Cabinet for Industrial & Commercial Applications Engineered for Industrial & Commercial Power Reliability Introducing the CESS-125K261, a next-generation 261kWh all-in-one energy storage cabinet developed by GS ENERGY, a global manufacturer specializing in commercial and industrial ESS solutions. Powered by high-capacity 314Ah LiFePO₄ cells, an intelligent liquid-cooling thermal system, and a high-efficiency 125kW PCS, this solution delivers stable, safe, and cost-efficient energy storage for factories, malls, hospitals, data centers, and microgrid projects. Whether your goal is peak shaving, backup power, energy optimization, or renewable integration, the CESS-125K261 provides a scalable, plug-and-play platform designed for long-term performance.
As a leading energy storage system supplier, GS Automatic offers compact, integrated cabinet BESS designed for small C&I, hospitals, conferences, and weak power grid areas.
The GS Automatic outdoor distributed energy storage system integrates core parts such as the battery units, PCS, fire extinguishing system, temperature control systems, and EMS systems.
GS5T110-PV050-B03 Charging/Discharging C-rate: ≤0.5CP Rated Power [kW]: 100 Rated Current: 144A Dimensions [mm] (D*W*H): 1400×1200×2200 Weight [kg]: 2450±5%
GS AUTOMATIC is a leading comprehensive solution provider of new power system.
We provide whole life cycle management, EPC contracting and maintenance service to help our customers achieve green power generation and high efficient energy consumption.
