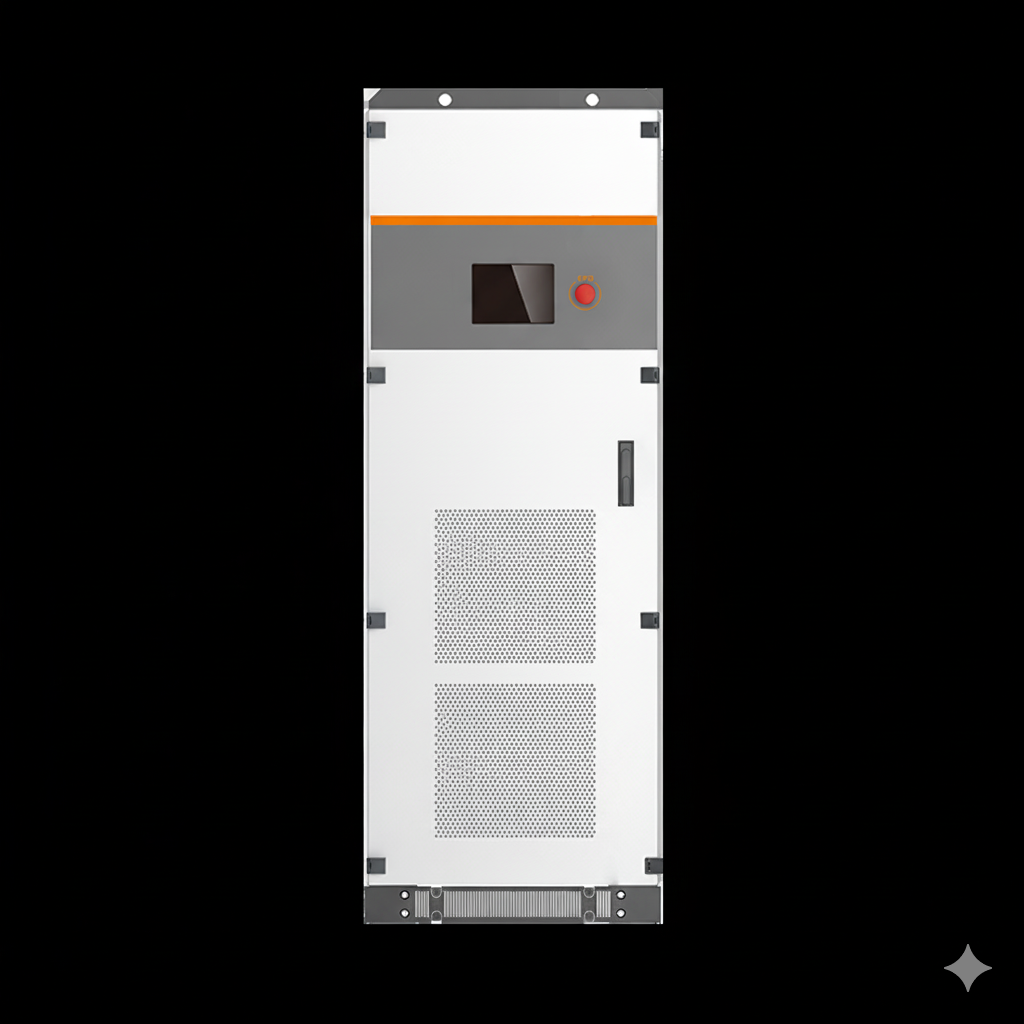

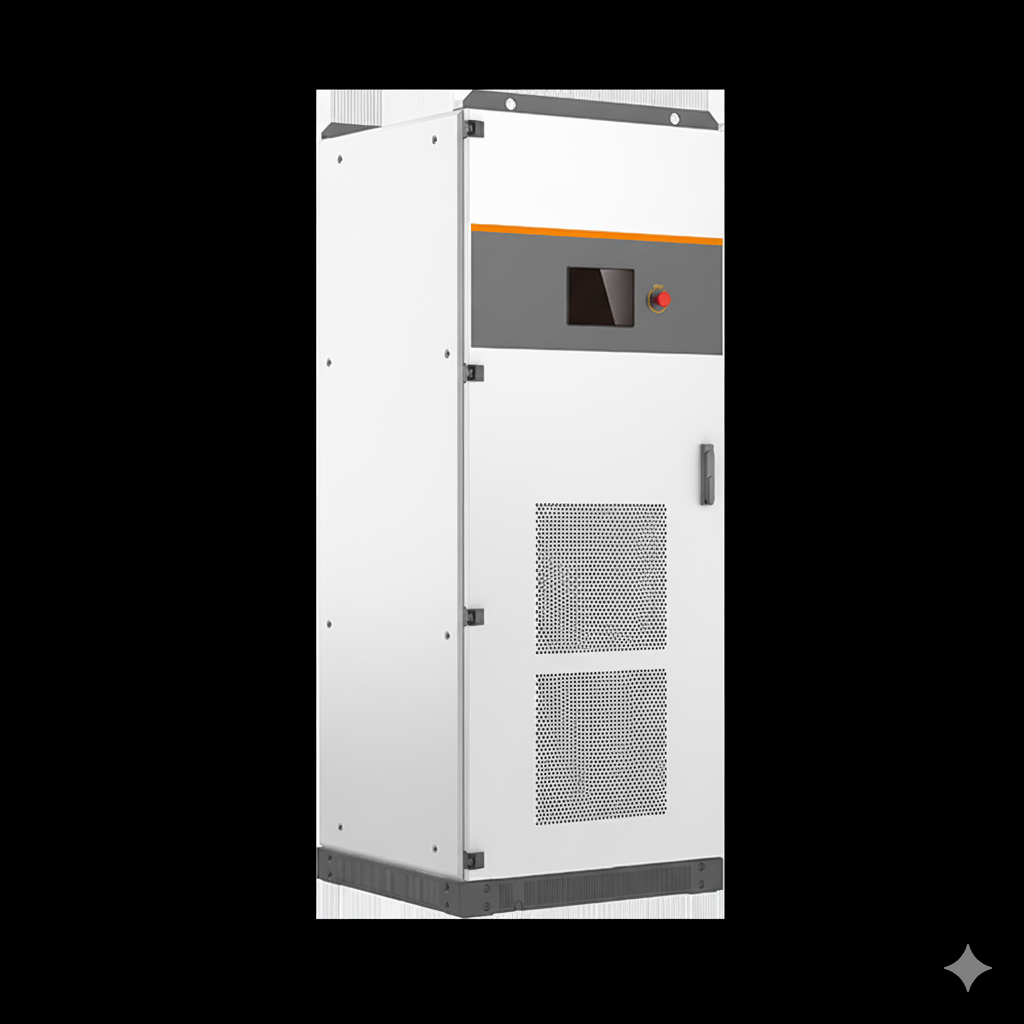

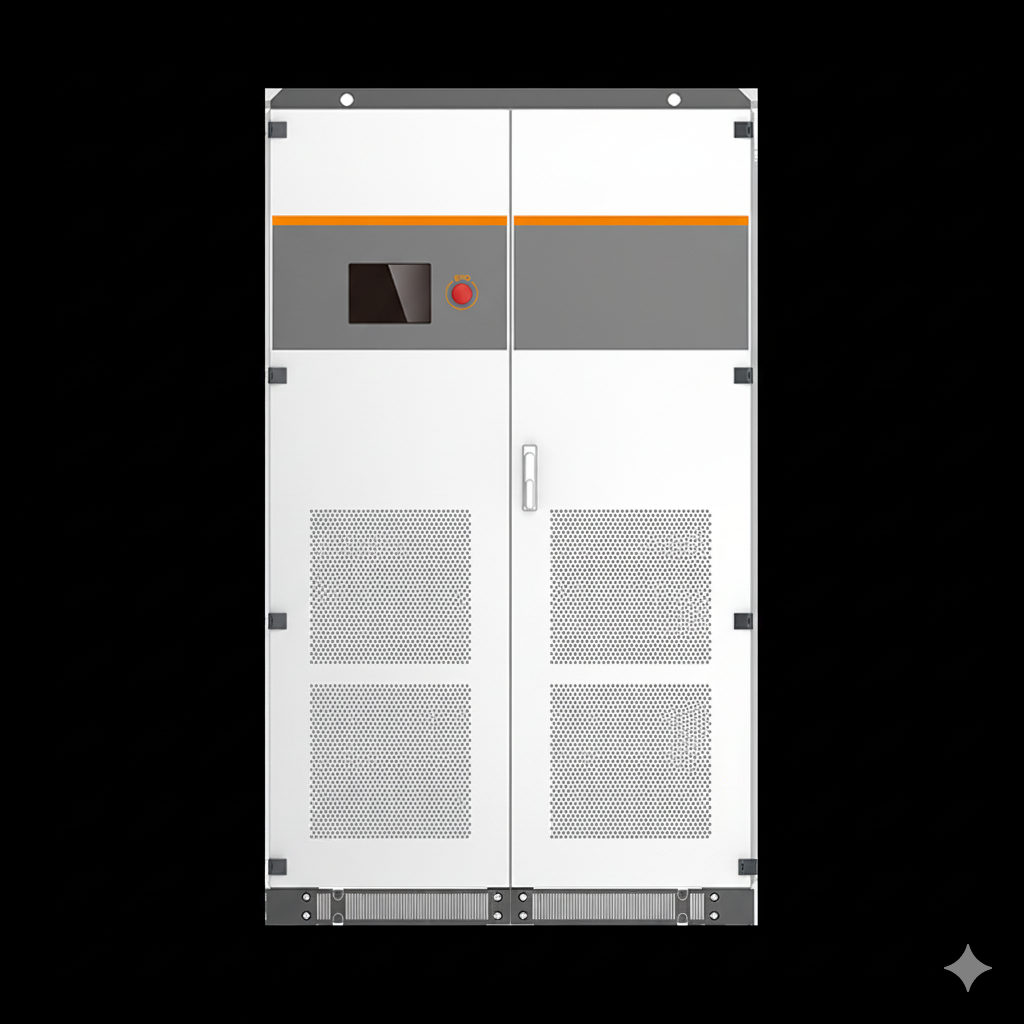

MEGA series isolated energy storage converter is developed based on the application requirements of large C&I such as peak load shifting, battery backup, etc.
MEGA series isolated energy storage converter is developed based on the application requirements of large C&I such as peak load shifting, battery backup, etc. It adopts full digital control technology, integrates the leading technological achievements of contemporary power electronics, and the highest efficiency of the product reaches 97.5%; Support multi-machine parallel function, can meet the power demand of 30KW~3MW.
Product Highlights
Safe and reliable
Passed IEC/EN 62109-1/-2, EN 62477-1, IEC/EN 61000-6-2/-6-4, EN 50549-1/-10, NRS 097-2-1:2017 ASGC, GB/T 34120, GB/T 34133, CGC-R46103:2018A, PTPIREE REV1.2: 2024 TYPE B certification test;
Flexible configuration
Product Benefits
Technical Specifications
| Model | MEGA0030TS | MEGA0050TS | MEGA0100TS | MEGA0150TS | MEGA0250TS | MEGA0500TS |
| DC(battery) | ||||||
| Voltage range (V) | 250~850 | 320~850 | 420~850 | 420~850 | 420~850 | 500~850 |
| Max. current (A) | 137 | 178 | 270 | 405 | 673 | 1,128 |
| AC(on-grid) | ||||||
| Max. output power (kW) | 33 | 55 | 110 | 165 | 275 | 550 |
| Rated output power (kW) | 30 | 50 | 100 | 150 | 250 | 500 |
| Rated voltage (V) | 400 | |||||
| Voltage range (V) | 320~460 | |||||
| Rated current (A) | 43 | 72 | 144 | 216 | 361 | 722 |
| Max. output current (A) | 48 | 80 | 159 | 238 | 397 | 794 |
| Rated frequency (Hz) | 50/60 | |||||
| Frequency range (Hz) | 45~55 / 55~65 | |||||
| THDi | <3% | |||||
| Power factor | 1leading~1lagging(settable) | |||||
| Grid type | 3W+N+PE | |||||
| AC(off-grid) | ||||||
| Rated voltage (V) | 400 | |||||
| THDu | ＜1% Linear ＜5% nonlinear | |||||
| Rated frequency (Hz) | 50/60 | |||||
| Overload capacity | 110% long-term | |||||
| General data | ||||||
| Max. efficiency | 96.3% | 96.5% | 97.1% | 97.1% | 97.3% | 97.5% |
| Ingress protection | IP21 | |||||
| Noise emission (dB) | <70 | |||||
| Operating temperature (℃) | -30～+55 | |||||
| Cooling | Forced air | |||||
| Relative humidity | 0 ~95% non-condensing | |||||
| Max. operating altitude (m) | 5,000(>3,000 derating) | |||||
| Dimension W*D*H (mm) | 800*800*1,900 | 800*800*1,900 | 800*800*1,900 | 800*800*1,900 | 1,200*800*2,050 | 1,600*1050*2,050 |
| Weight(kg) | 621 | 712 | 936 | 1,057 | 1,582 | 2,665 |
| Self-consumption | ＜0.5% | |||||
| On/ off grid switching | Automatic | |||||
| Display and communication | ||||||
| Display | LCD touch-screen | |||||
| BMS communication | RS485, CAN | |||||
| EMS communication | RS485, TCP/IP | |||||
| Certificates | IEC/EN 62109-1/-2, EN 62477-1, IEC/EN 61000-6-2/-6-4, EN 50549-1/-10, NRS 097-2-1:2017 ASGC, GB/T 34120, GB/T 34133, CGC-R46103:2018A, PTPIREE REV1.2: 2024 TYPE B | |||||
