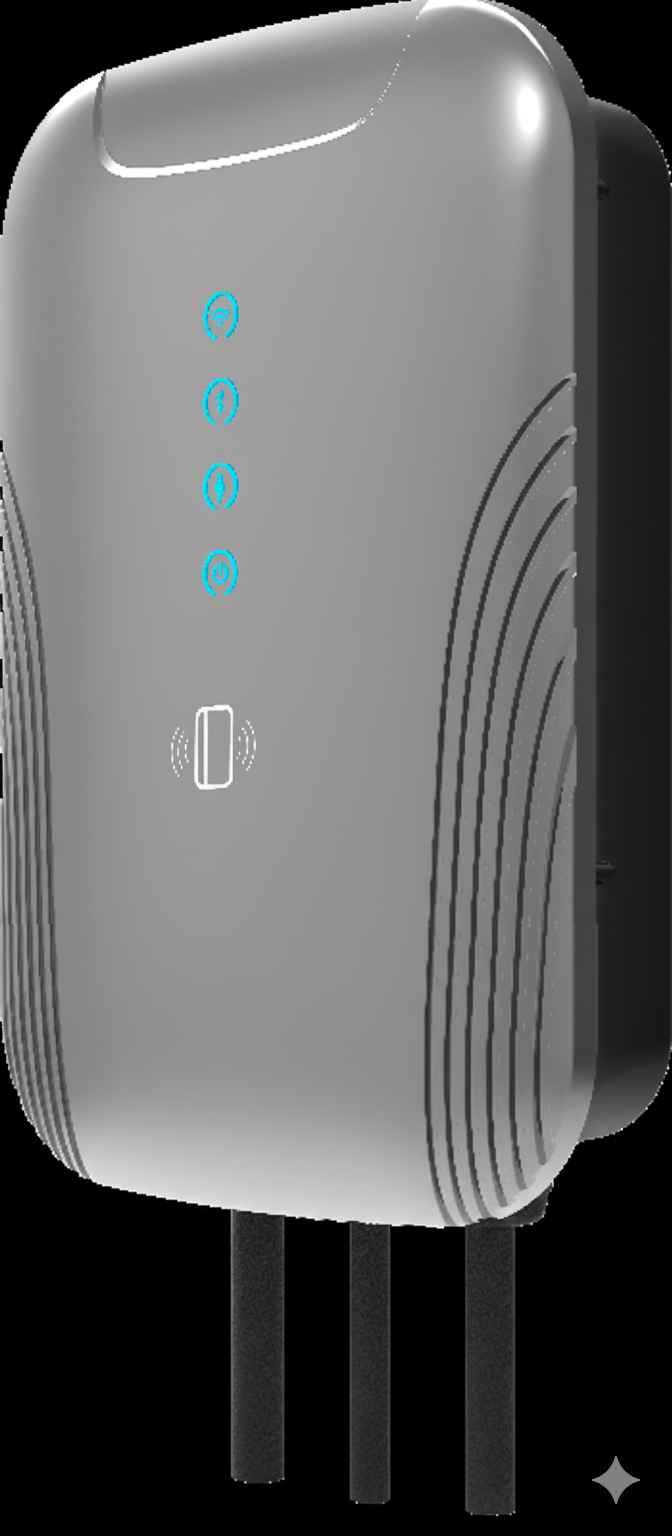

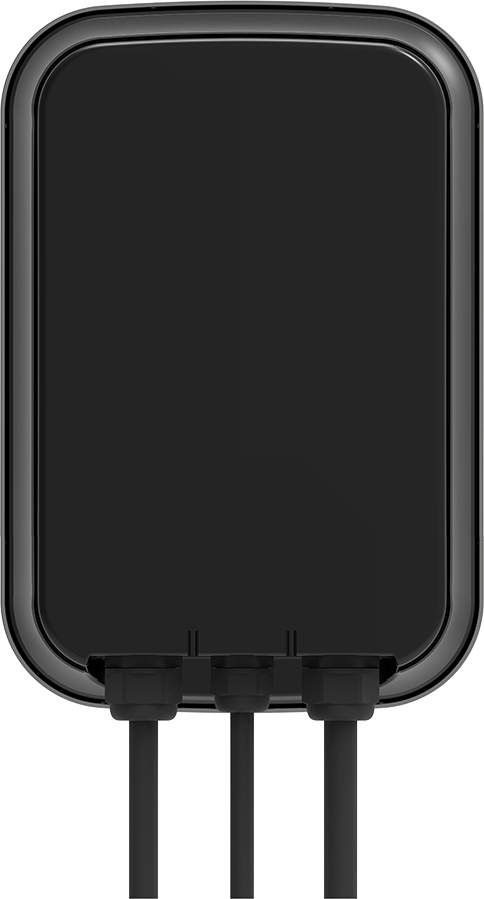

The GSYTY is a new generation of All-in-one DC EV charger incorporating 30kW potting charging modules, with an output voltage range of DC200-1000V, making it compatible with all vehicle models on the market.
A-type leakage protection design is reliable enough to ensure charging safety. lt fully meets local safety requirements and third-party testing standards. lt can be operated with great confidence.
Product Introduction
The GSYTY is a new generation of All-in-one DC EV charger incorporating 30kW potting charging modules, with an output voltage range of DC200-1000V, making it compatible with all vehicle models on the market.
• It supports various payment methods, including credit card payments, and can be equipped with a cable management device.
• The system features smart power distribution and charging control, making it suitable for a wide range of charging scenarios.
• Equitable Power Distribution: Equitable power distribution for flexible output during simultaneous dual-port charging.
• Dynamic Load Balancing: Addresses the issue of insufficient transformer capacity during peak electricity usage, enabling fast response and smart orderly charging.
• Easy Maintenance: On-site detection of charging modules, identification of easily damaged parts, and modular design reduce on-site maintenance time by over 30%.
• Smart Fault Prediction: With an uptime greater than 95%, multi-sensor technology, and big data analysis through the operation and maintenance platform, more than 50% of equipment anomalies can be predicted.
• Multiple Payment Methods: Supports card swipe, QR code, and credit card activation for charging, providing convenient operation.
• Multiple Charging Modes: Supports Plug and Charge, dual-gun simultaneous charging mode, VIP mode, and day-night mode, reducing equipment costs by approximately 10%.
• Remote Operation and Maintenance Platform: Features remote OTA and USB-OTA, resolving over 90% of faults remotely.
• Battery Health Smart Algorithm: Identifies safety risks in new energy vehicle batteries, ensuring driver safety (available in future upgrades).
Technical Specifications
| Items | Product Type (7kW) | Product Type (11kW) | Product Type (22kW) |
| Input characteristics | |||
| Power supply mode | Single-phase three wire system | Three-phase five-wire system | Three-phase five-wire system |
| Voltage | 230V±15% | 400V±15% | 400V±15% |
| Frequency | 50Hz | 50Hz | 50Hz |
| Output characteristics | |||
| Voltage | 230V±15% | 400V±15% | 400V±15% |
| Current | ≤32A | ≤16A | ≤32A |
| Interface type | Type2 | Type2 | Type2 |
| Application Environment | |||
| Operating temperature | -30~+50℃ | -30~+50℃ | -30~+50℃ |
| Operating humidity | 5%-95 % RH non-condensing | 5%-95 % RH non-condensing | 5%-95 % RH non-condensing |
| Altitude | ≤2000m | ≤2000m | ≤2000m |
| Protection level | IP65 | IP65 | IP65 |
| Basic Information | |||
| Dimensions (W*D*H) | 231*340*90 mm | 231*340*90 mm | 231*340*90 mm |
| Communication interface | Ethernet, 4G, Wi-Fi, Bluetooth | Ethernet, 4G, Wi-Fi, Bluetooth | Ethernet, 4G, Wi-Fi, Bluetooth |
| Frequency bandwidth | 2412-2472MHz (Wi-Fi) | 2412-2472MHz (Wi-Fi) | 2412-2472MHz (Wi-Fi) |
| Cable length | 5m; (7m optional) | 5m; (7m optional) | 5m; (7m optional) |
| Qty. of charging guns | 1 | 1 | 1 |
| Start charging mode | Plug and play, Swipe card, APP | Plug and play, Swipe card, APP | Plug and play, Swipe card, APP |
| Letter of agreement | OCPP 1.6J (can be upgraded to OCPP 2.0.1 later) | OCPP 1.6J (can be upgraded to OCPP 2.0.1 later) | OCPP 1.6J (can be upgraded to OCPP 2.0.1 later) |
| HMI | Status indicator | Status indicator | Status indicator |
| Installation mode | Wall-mounted/floor-standing | Wall-mounted/floor-standing | Wall-mounted/floor-standing |
| Certification | CE, CB | CE, CB | CE, CB |
| Safety function | Equipped with input over or under voltage protection, input over-current protection, over-temperature protection, leakage protection, emergency stop protection, and grounding fault alarm | Equipped with input over or under voltage protection, input over-current protection, over-temperature protection, leakage protection, emergency stop protection, and grounding fault alarm | Equipped with input over or under voltage protection, input over-current protection, over-temperature protection, leakage protection, emergency stop protection, and grounding fault alarm 导出到 Google 表格 |
The GSYTS-480 is a split high power charging system designed for high power charging stations, which adopts a power supply cabinet with 8 dual charging terminals, a total of 16 outputs with 360-480kW rated power.
GSYTY is a new generation of All-in-one DC constant power fast EV Charger with system built-in 30/40kW constant power charging module and a highest output voltage of 1000v, suitable for all kinds of vehicle charging requirements.
